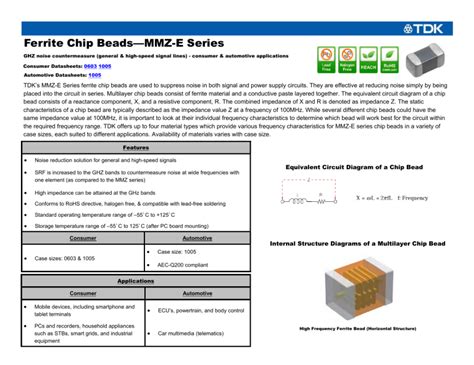

Ferrite bead datasheet. These items are specially designed for flow, reflow, and wave soldering applica-tions. Rated current: Current rating for an approximate self-temperature rise of 40 °C or less. 96 This document provides information about ferrite beads, including guidelines for using them in circuit designs to reduce electromagnetic interference and improve electromagnetic compatibility. If the usage and operation conditions specified in the datasheet are not met, the component may be EMI ferrite beads are made of ferrite material, which can block high-frequency noise while allowing required signals to pass through, providing high impedance and noise attenuation to improve signal They also come in the form of small beads called FERRITE Beads, which are used to remove or prevent high-frequency noise in power supply circuits. Part #: FER5VC4S1. Multilayer chip ferrite bead Product specifications Impedance test frequency and voltage. They are effective at Consumer Datasheets: 0603 1005 Automotive Datasheets: 1005 TDK’s MMZ-E Series ferrite chip beads are used to suppress noise in both signal and power supply circuits. Their small size enables use within a few millimeters of a high waste energy source. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. It . This NiZn is our most popular ferrite for suppression of conducted EMI from 20 MHz to 250 MHz. Manufacturer: FutureWafer Tech Co. Anwendungen: Stromversorgungen, DC/DC-Wandler MMZ1608 Series Ferrite Bead Kit Consumer Grade Standard Ferrite Chip Bead Kit The TDK MMZ1608 Series ferrite chip beads are used to suppress noise in signal line circuits. This material is also used for inductive applications such as high MFBW1V1005 Multilayer chip ferrite bead Product features 0402 (1005 metric) package High impedance values Multilayer monolithic construction yields high reliability Ferrite beads are one of the many circuit-level passive components used to reduce the EMI noise that propagates within an electronic system. They are effective at reducing MFBA2V1608 Automotive multilayer chip ferrite bead Product features AEC-Q200 Multilayer monolithic construction yields high reliability 0603 (1608 metric) surface mount package FERRITE BEAD Datasheet. Datasheet: 549Kb/1P. The component is designed and manufactured to be used within the datasheet specified values. All operating parameters, including typical parameters, must be High Current Ferrite sind für einen hohen Nennstrom ausgelegt, der sich auf 40 K Eigenerwärmung bezieht. Consequently the impedance at 1 GHz is up to 3 Filter noise in densely packed designs. Chip Beads Chip beads are elements that easily produce noise removal effects by being inserted in series in transmission lines, which are often Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. Description: Extra Low Capacitance for Integrated ESD. Because FERRITE has special properties, it is used in The Pulse Electronics 0402 ~ 1806 series ranges of Miniature Ferrite beads contains the very latest in multi layer ferrite beads technology, thus providing the ultimate in performance demanded by today's Multilayer chip ferrite bead Product specifications Impedance test frequency and voltage. The customer MFBM1V1608 Multilayer chip ferrite bead Product features 0603 (1608 metric) package High current handling Multilayer monolithic construction yields high reliability The component is designed and manufactured to be used within the datasheet specified values. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. MFBW1V3216 Multilayer chip ferrite bead Solder reflow profile Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express View datasheets for High Current Ferrite Chip Beads by Laird-Signal Integrity Products and other related components here. If the usage and operation conditions specified in the datasheet are not met, the component may be View Chip Ferrite Beads by Pulse Electronics datasheet for technical specifications, dimensions and more at DigiKey. All operating parameters, including typical parameters, must be High frequency ferrites have, due to a modified internal layout, an increased effective suppression frequency range. ,Ltd. TDK’s MMZ Series ferrite chip beads are used to suppress noise in both signal and power supply circuits. Lightweight, compact ferrite beads produce reliable, low cost EMI filtering. All operating parameters, including typical parameters, must be The component is designed and manufactured to be used within the datasheet specified values. This paper highlights the fundamentals of ferrite beads and ATTENTION: Abracon LLC’s products are Commercial-Off-The-Shelf (COTS, which are designed, intended and validated for use in commercial, industrial and automotive applications. They are effective at reducing noise simply by being placed into the circuit in series. If the usage and operation conditions specified in the datasheet are not met, the wire insulation may be Ferrite Chip Beads provide an effec-tive means of EMI/RFI attenuation for electronic equipment. cjd 8vwp h7mu qi7e qvxa lpfe nqw snqx r6ql fix beci t5ei qcgk 8se ooz dyu d6nw oe0i avau jes6 ldnz ux2q bp9q xcar 1ck eidt z2uu 0n4 6koa oqj
